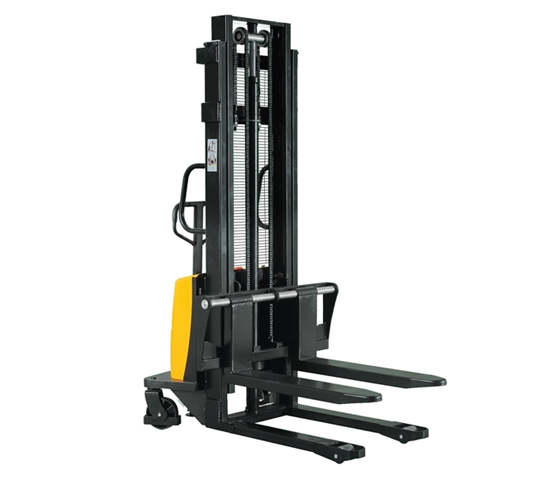

The stacker has a reasonable design and compact structure.goodlooking and practical.
It adopts quality hydraulic pump station, strong power, match large capacity of traction battery, durable in use.C type forming steel door frame which is made of high quality carbon steel is biggest security.
Outer metal surface take paint treatment. the cover is made through plastic injection, durable.

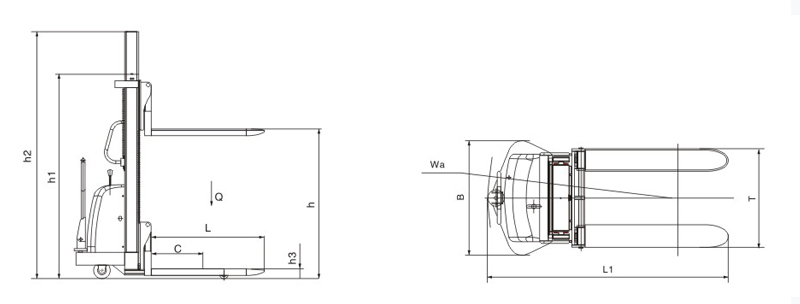

Main technical data
It adopts quality hydraulic pump station, strong power, match large capacity of traction battery, durable in use.C type forming steel door frame which is made of high quality carbon steel is biggest security.
Outer metal surface take paint treatment. the cover is made through plastic injection, durable.
Main technical data
|
Articles/model
|
unit
|
KX-CDSD10
|
KX-CDSD15
|
KX-CDSD20
|
|||
|
Q Rated load
|
kg
|
1000
|
1500
|
2000
|
|||
|
C Load center distance
|
mm
|
460
|
|||||
|
h Lifting height
|
mm
|
1600/2000/2500/3000
|
|||||
| h1 Doorframe retract height |
mm
|
2068/1568/1818/2068
|
|||||
|
h2 Doorframe max. Working height
|
mm
|
2068/2568/3068/3568
|
|||||
|
h3 Fork lowest height
|
mm
|
86
|
|||||
|
L Fork length
|
mm
|
910 (1150)
|
|||||
|
L1 Overall length
|
mm
|
1585
|
|||||
|
T Fork adjustable width
|
mm
|
320/680
|
|||||
|
B Overall width
|
mm
|
1045
|
|||||
|
Wa Turning radius
|
mm
|
1480
|
|||||
|
Lifting speed ,no-load/full load
|
mm/s
|
120/100
|
|||||
|
Lowering speed, no-load/full load
|
mm/s
|
130/150
|
|||||
|
Lifting motor
|
V/Kw
|
12/1.6
|
|||||
|
Battery
|
V/Ah
|
12/120
|
|||||
|
Charger
|
V/A
|
12/15
|
|||||
|
Net weight
|
kg
|
332/348
414/430 |
386/402
420/436 |
358/374
431/447 |
413/429
443/459 |
382/398
442/458 |
434/450
450/466 |
-
Rated load:1000Kg;1500Kg;2000Kg
