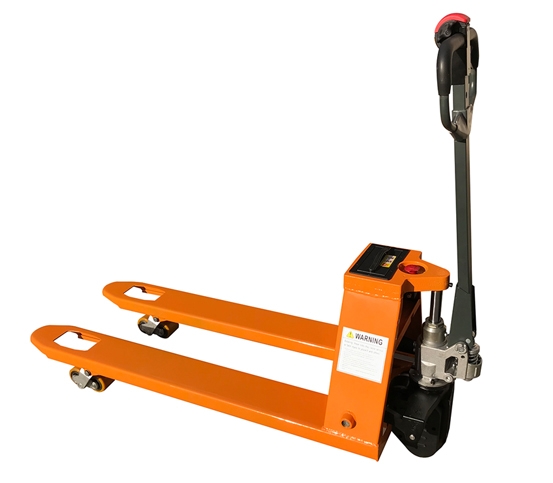

The vehicle design is reasonable,the structure is compact,goodlooking and practical.
The handle adopts ergonomic structure and is compact and stable.All operation is realized through the handle.
The drive component design is advanced,accord with modem transport concept.
The fuselage is made of carbon structural steel,and it is treated with shot blasting,and it is durable.
Main technical data
The handle adopts ergonomic structure and is compact and stable.All operation is realized through the handle.
The drive component design is advanced,accord with modem transport concept.
The fuselage is made of carbon structural steel,and it is treated with shot blasting,and it is durable.
Main technical data
|
Articles/mode
|
unit
|
KX-PTT
|
|
Operation style
|
|
Setp
|
|
Drive
|
|
Electric
|
|
Rated load Q
|
kg
|
1500
|
|
Fork lowest height h2
|
mm
|
85
|
|
Max.lifting height h1
|
mm
|
200
|
|
Total height L
|
mm
|
1585
|
|
Wheel-base lenghtL2
|
mm
|
1270
|
|
Overal width B
|
mm
|
550
|
|
Front Wheel track B1
|
mm
|
380
|
|
Fork size L1×e×s
|
mm
|
1150×160×50
|
|
Total height h
|
mm
|
1300
|
|
Front wheel size
|
mm
|
Φ80×60
|
|
Driving wheel size
|
mm
|
Φ210×70
|
|
Turning radiua Wa
|
mm
|
1280
|
|
Load center C
|
mm
|
500
|
|
Drive motor
|
V/Kw
|
24/0.6
|
|
Battery
|
V/Ah
|
24/20 Lithium battery
|
|
NW/GW
|
kg
|
234/250
|
-
Rated load:1500Kg
