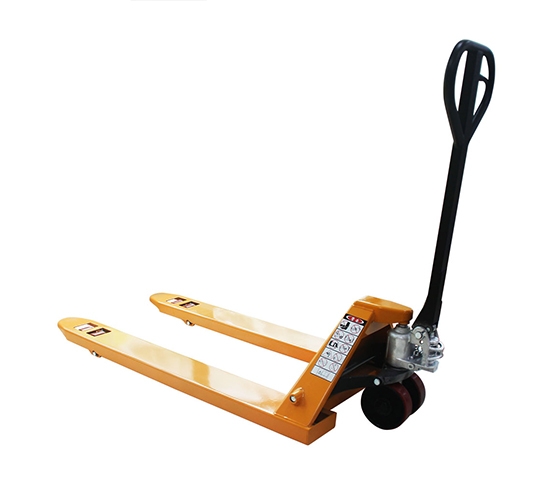

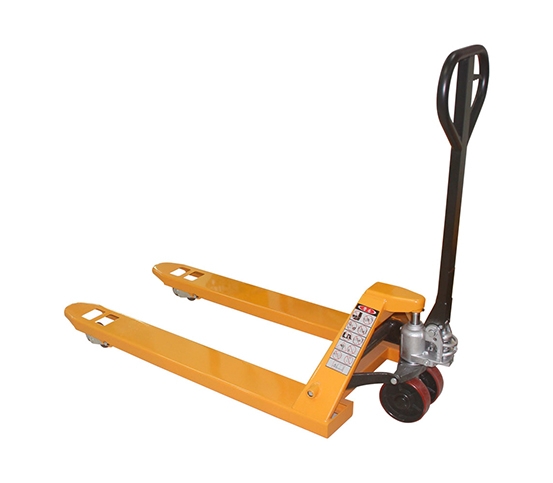

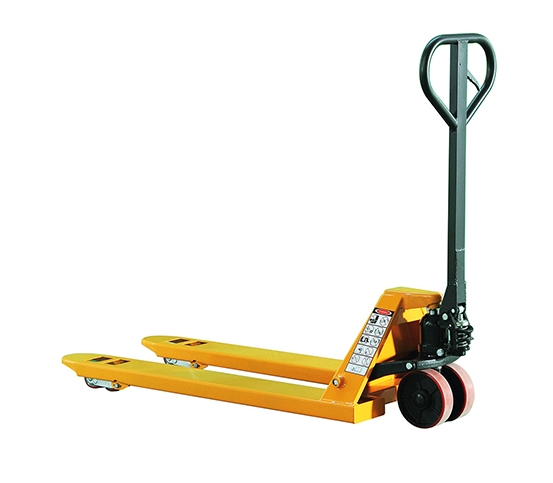

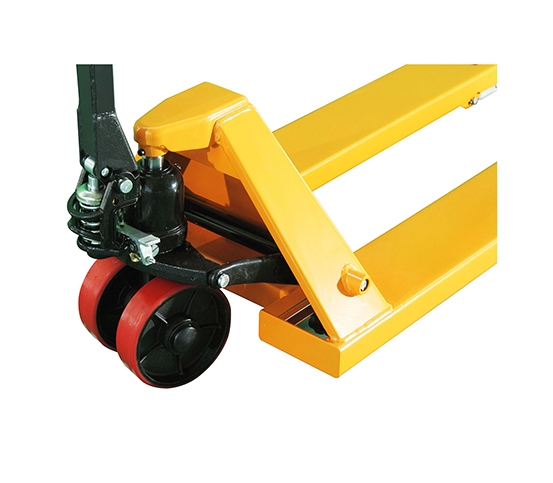

This series truck add reinforcing rid, increase the load strength, strong and durable.

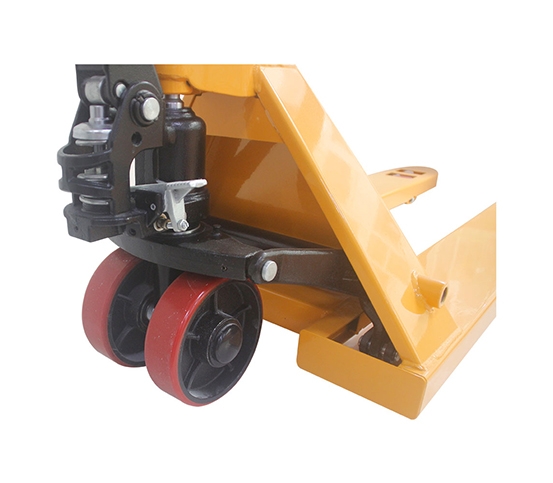

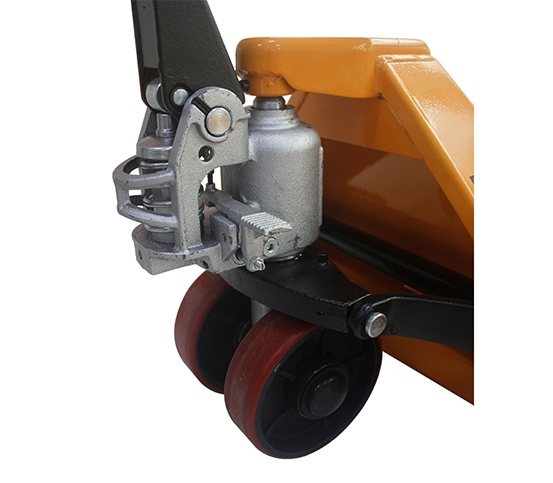

The main part oil pump adopts quality carbon steel precision casting, go through conditioning, pass pressure Mpa test, no oil leakage, no deformation.
Body is made of carbon structure steel punch forming, go through polishing and galvanized process. durable wear resistant.
The core part of oil pump is imported, all piston rods are hard-chrome plated. eradicate oil spill disadvantage,durable in use.
Main technical data
The main part oil pump adopts quality carbon steel precision casting, go through conditioning, pass pressure Mpa test, no oil leakage, no deformation.
Body is made of carbon structure steel punch forming, go through polishing and galvanized process. durable wear resistant.
The core part of oil pump is imported, all piston rods are hard-chrome plated. eradicate oil spill disadvantage,durable in use.
Main technical data
|
Articles/model
|
unit | KX-SDC20 | KX-SDC25 |
KX-SDC30
|
|||
|
Q Rated load
|
kg
|
2000
|
2500
|
3000
|
|||
|

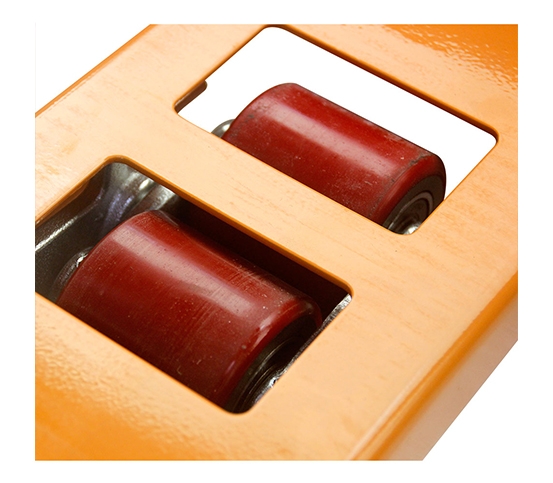

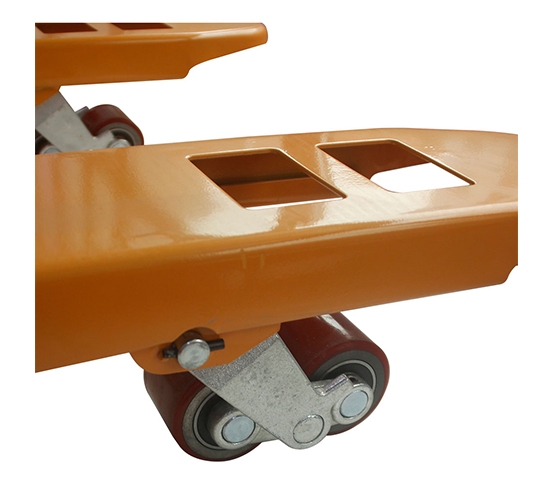

Carrying wheel
|
mm
|
φ70/60
|
φ70/60
|
φ80/70
|
φ80/70
|
||
|
Steering wheel
|
mm
|
φ160/50
|
φ160/50
|
φ180/50
|
φ180/50
|
||
|

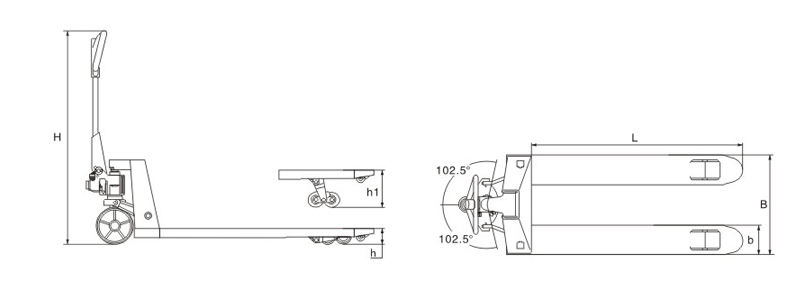

h Fork lowest height
|
mm
|
75
|
75
|
85
|
85
|
||
|
h1 Max.fork height
|
mm
|
190
|
190
|
200
|
200
|
||
|
H1 Overall height
|
mm
|
400/450
|
|||||
|
H Overall height
|
mm
|
1185/1230
|
|||||
|
h2×b Fork size
|
mm
|
55/160
|
|||||
|
L Fork length
|
mm
|
1150/1220
|
|||||
|
B Overall width
|
mm
|
550/685
|
540/685
|
||||
|
L1 Overall length
|
mm
|
1520/1590
|
1530/1600
|
1530/1600
|
|||
|
Net weight
|
kg
|
55/57.5
59.5/62 |
58.5/61
63.5/66 |
56.5/59
60/62.5 |
60.5/63
64.5/67 |
67.5/70
77/79.5 |
72.5/75
82/84.5 |
-
