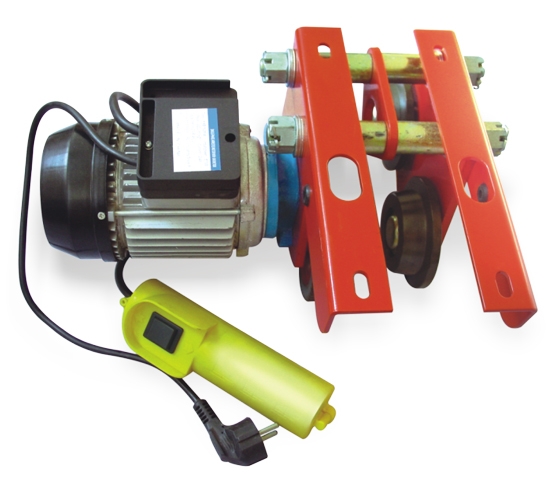

TD1A---Electric Trolley

Rated Capacity:1.2(t)
Approved: CE
Contact Now
TD mini electric vehicle engine works by running on the down edge of the H shaped track,combined with the electric hoist or hand power hoist to be formed into the lane with bridge, single-rail or arm-suspended style. They can be widely used in the hang-transportationoccasions for mounting the machine and equipments in workshop, mining, dock,warehouse Machine work, injection, compression casting, pressurization, clamping die and construction sites.

Model
TD1A
Rated Capacity(t)
1.2
Assembling Height(m)
6
Moving Speed(m/min)
13
Motor Parameter
Rated Volt(v)
AC 100/110/120/220/230/240 50/60Hz
Power(w)
540
Speed(r/min)
1400
Min Radius of Crooked Track Which Can Pass(m)
1.5
"1" Steel Beam Recommended
Model of Steal bea(a)
14-20
Width of Track(mm)
80-102
N.W(kg)
19
