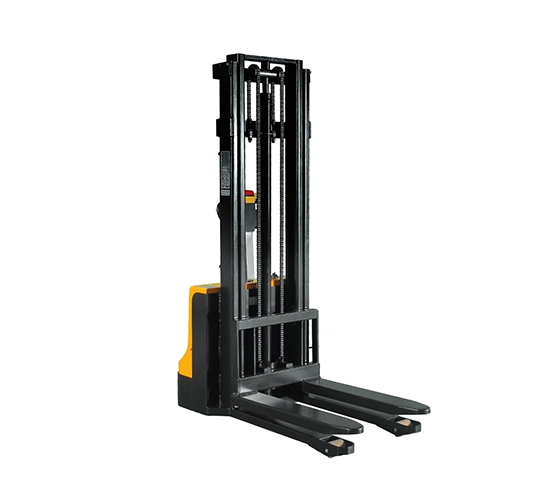

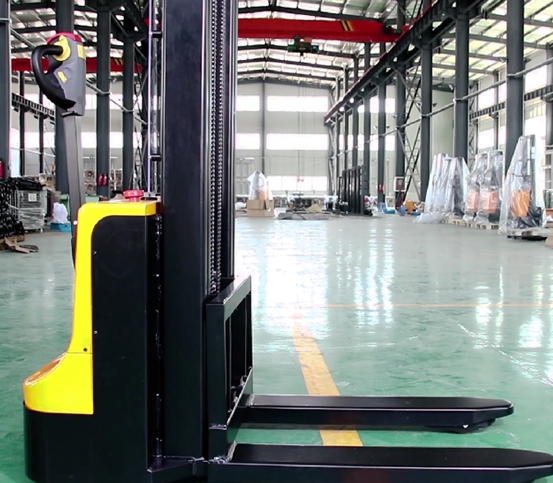

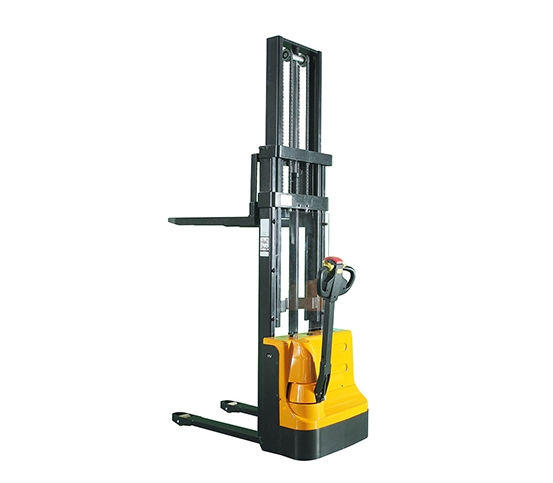

KX-CDD-B-10/16---Electric Stacker

Rated load:1000Kg;1600Kg
Contact Now
This series of all-electric stacking vehicles, according to the market demand improvement a simple and convenient operation of light vehicles.
The handle is designed with smart science, and it's tight, and it's all done through the handle.

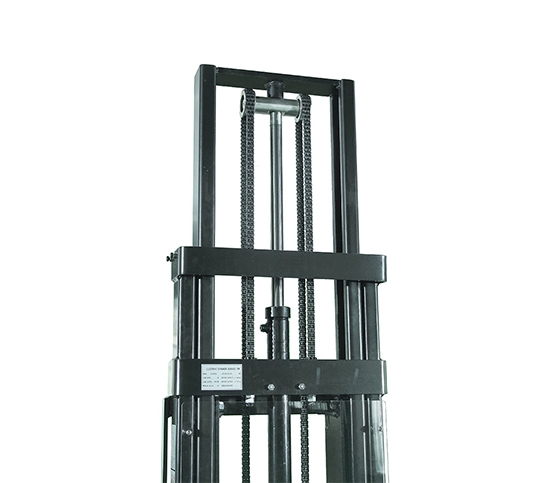

The vehicle design is reasonable, the appearance is goodlooking, the column adopts the special C section steel,
The main function of product is sturdy and durable.

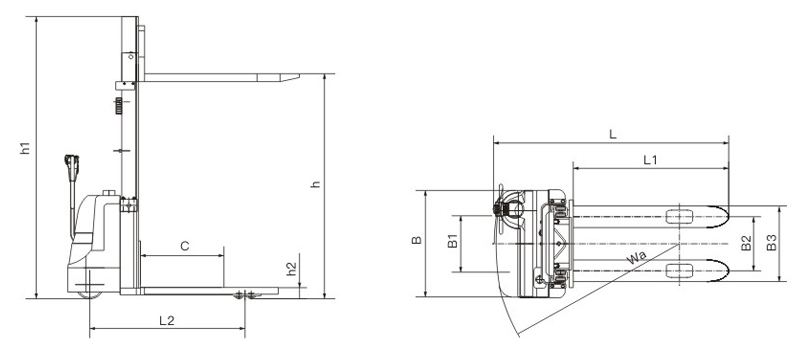

Main technical data
Articles/model
unit
KX-CDD-B-10
KX-CDD-B-16
Drive/operation typ
QD
Electric/Stand
Q Rated load capacity
kg
1000
1600
C  Load center distance
mm
600
h   Hoisting height
mm
1600/2500/3000
h1   Doorframe max. Working height
mm
2060/3060/3560
h2   Fork lowest height
mm
86
L   Machine length
mm
1755
L1   Fork length
mm
1150
L2  Length between two wheels
mm
1160
B   Overall width
mm
800
B1   Rear-wheels track
mm
516
B2  Front Wheels track
mm
535
B3   Fork width
mm
695
Wa   Turn radius
mm
1360
Driving speed. No-load/full-load
mm
4.5/4.0
Lifting speed. No-load/full-load
mm/s
150/100
Lifting speed. No-load/full-load
mm/s
130/150

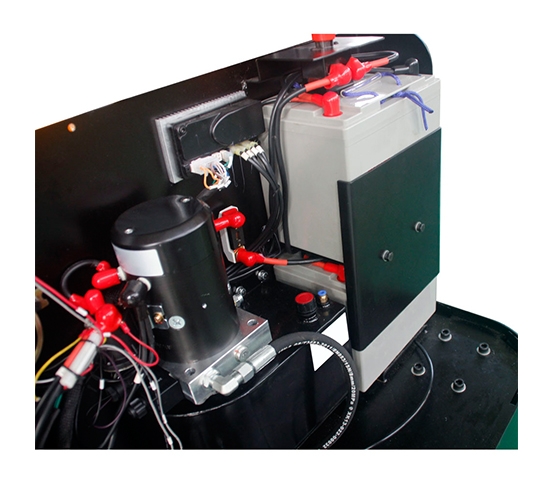

Lifting motor
V/A
24/80
Battery voltage/rated capacity
V/Ah
2×12/100
Drive control mode
DC
Speed control
weight
Kg
414/430
454/570
564/610
444/460
484/500
594/610
