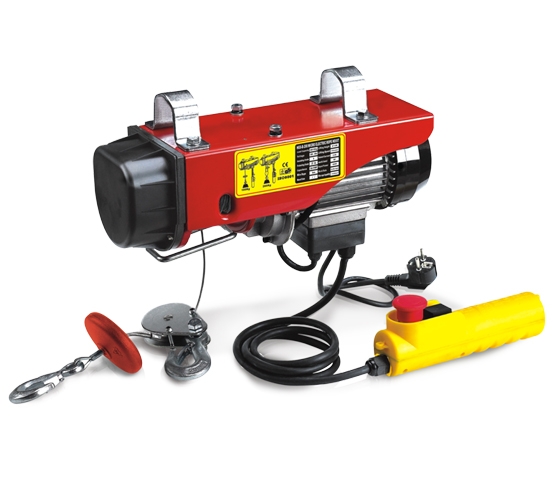

PA-200---PA-1000---Mini Electric Hoist

Adopt urgent stop switch and reinforced breaking switch with position limit.Protection class up to IP54.With thermal prevention device.

Model	HGS-B1-200 PA-200		HGS-B1-250 PA-250		HGS-B1-300 PA-300		HGS-B1-400 PA-400		HGS-B1-500 PA-500		HGS-B1-600 PA-600		HGS-B1-700 PA-700		HGS-B1-800 PA-800		HGS-B1-1000 PA-1000
Method of Use	Single -hook	Double -hook	Single -hook	Double -hook	Single -hook	Double -hook	Single -hook	Double -hook	Single -hook	Double -hook	Single -hook	Double -hook	Single -hook	Double -hook	Single -hook	Double -hook	Single -hook	Double -hook
Rated Volt(V)	AC 220/230/240    50/60Hz
Input Power(W)	480		540		600		950		1020		1200		1250		1300		1600
Rated Capacity(kg)	100	200	125	250	150	300	200	400	250	500	300	600	350	700	400	800	500	1000
Lifting Speed(m/min)	10	5	10	5	10	5	10	5	10	5	10	5	8	4	8	4	8	4
Lifting Height(m)	12	6	12	6	12	6	12	6	12	6	12	6	12	6	12	6	12	6
Qty./CTN(pcs)	2																1
Packing Size(mm)	490×425×155						525×480×165						540×505×170				620×240×350
G.W/N.W(kg)	25/23						37/35						41/39				35/34
