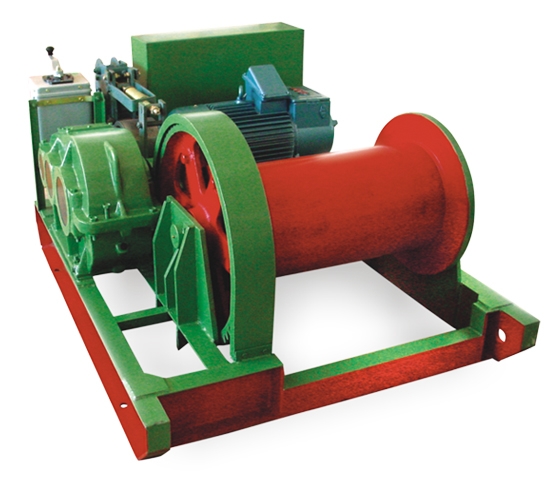

JM2-JM30---Slow Building Electric Winch

Rated Capacity:2000-30000 (kg)
Contact Now
This series electric winch can be mainly used in lifting,disassemble,moving and intalling in building site, digging and workshops.,with strong pull.Wire rope arranged in order,safe and reliable.

Model
JM2
JM3
JM5
JM8
JM10
Rated Capacity(kg)
2000
3000
5000
8000
10000
Rated speed (m/min)
12
10
10
8
Cable Diameter(φmm)
ф 15.5
ф 17
ф 21.5
ф 26
ф 30
Wire Rope Capacity(mm)
150
180
300
Reduction box
Type
JZQ350
JZQ400
JZQ500
JZQ650
Transmission ratio
23.34
31.5
23.34
31.5
40.17
Drum (mm)
Diameter(ф)
280
310
400
500
550
Length
480
510
730
910
1020
Motor
Type
YZR160M-6
YZR180L-8
YZR225M-8
YZR250M1-8
Power(kW)
7.5
11
22
30
Rotating speed(r/min)
970
685
715
720
Arrester
TJ2-200
TJ2-300
YWZ-300
Size(cm)
115 ×100 ×60
138 ×106 ×65
185 ×135 ×90
205 ×275 ×105
220 ×180 ×110
N.W.(kg)
630
680
1200
2500
3200




Model
JM12
JM16
JM20
JM25
JM30
Rated Capacity(kg)
12000
16000
20000
25000
30000
Rated speed (m/min)
8
9
8.5
Cable Diameter(φmm)
ф 32
ф 36.5
ф 39
ф 42
ф 48
Wire Rope Capacity(mm)
500
600
800
Reduction box
Type
JZQ650
JZQ750
JZQ750
JZQ750
JZQ850
Transmission ratio
40.17
31.5
31.5
31.5
23.34
Drum (mm)
Diameter(ф)
650
750
750
850
960
Length
1020
1315
1833
1932
1968
Motor
Type
YZR250M2-8
YZR280S-8
YZR250M2-6
YZR280S-6
YZR280M-6
Power(kW)
37
45
45
55
75
Rotate speed(r/min)
725
717
965
969
969
Arrester
YWZ-300
YWZ-400
YWZ-400
YWZ-400
YWZ-400
Size(cm)
250 ×190 × 120
390 ×300 ×245
400 ×300 ×170
412 ×300 ×200
450 ×300 ×250
N.W.(kg)
5500
7500
8500
9500
11000
